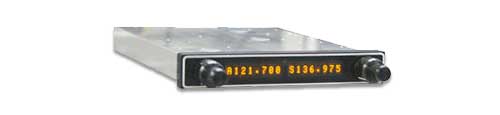

VAL AVIONICS NAV 2000 VHF RECEIVER
VAL AVIONICS NAV 2000 VHF RECEIVER
Description:
The new VAL Avionics NAV 2000 is the perfect complement to the COM 2000. Created from the same durable design, the NAV 2000 is built to interface with most NAV indicators, past and present. Together, NAV 2000 and COM 2000 are the perfect replacement for an aging KX-170B or Cessna NAV/COM.
The NAV 2000 is the thinnest panel-mounted NAV radio available on the market. The NAV 2000 is an effective and easy-to-operate unit that exemplifies the principles of simplicity, durability and innovation that are central to all VAL Avionics products. With features and capabilities that are comparable with more expensive radios and a compact, hard-working design, the NAV 2000 is perfectly suited for light-sport and experimental aircraft.
The NAV 2000 was designed for EFIS panels. Therefore, the NAV 2000 uses the Garmin SL30 communication protocol based on NEMA-0183 for maximum compatibility with all current EFIS systems.
In addition, if a NAV 2000 is connected through a COM 2000, the whole system will act as a single fully functioning SL30.
To see if your unit is compatible, see our compatibility chart.
Features:
- Built-in Localizer and Glide Slope receiver.
- Built-in VOR receiver.
- Complete EFIS integration via RS-232 interface.
- Internal course deviation indicator.
- Large, easy-to-read 3/8-inch character display.
- 15 memory locations with user-defined alphanumeric channel identifiers.
- Milled billet aluminum construction.
- Compatible with most existing NAV indicators.
- Compact design: 1" x 6" x 9" body
- 3.00 pounds (1.36 kg)
- Dual concentric knob controls.
- Photocell controlled automatic brightness.
- Non-volatile memory.
- Meets or exceeds minimum operational performance standards for airborne equipment.
- 2-year manufacturer’s warranty.
Includes:
- NAV 2000
- Installation tray
- 37-pin connector
- 37 crimp-insertion pins
- BNC to Blind-Mate barrel connector
- Installation Manual
- 7/64" x 9" Hex Balldriver
- Additional mounting hardware
