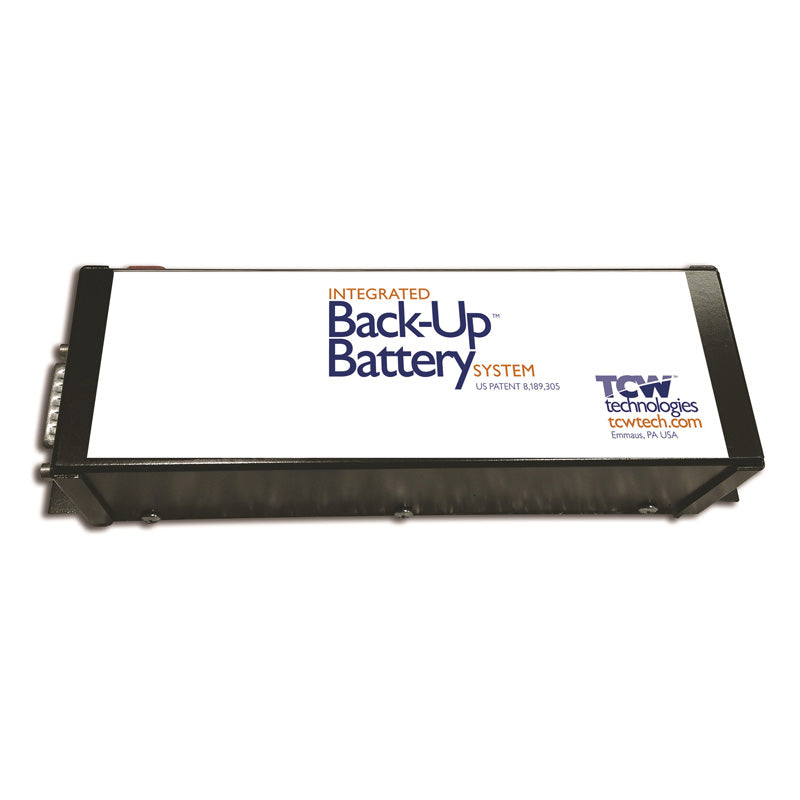

Integrated Battery Back-up System (IBBS)

Product Description

Integral to the IBBS is a lithium-iron-phosphate battery pack and a matched charging system to ensure the battery is properly charged and maintained.  The system includes switching circuitry to provide a stable source of output power during both normal and emergency operations.  The IBBS system also provides signals to other equipment such as EFIS systems to communicate the operating state of the back-up bus as well as the state of the battery.

The IBBS system connects to the standard aircraft power bus and provides an output to critical equipment that requires back-up power. Additionally, the IBBS system provides surge and sag protection for connected equipment, allowing operation of critical equipment during engine starting.

The IBBS system is suitable for use with equipment such as Garmin GNS and GTN series navigators, G3X series of avionics, Grand Rapids Technologies EFIS systems, Advanced Flight Systems EFIS, Dynon EFIS, and MGL EFIS, TruTrak Autopilots and EFIS, and Trio Autopilots.

IBBS products are protected by US Patent 8,189,305
-----------------------------------------------------------------------------------------------

The Integrated Battery Back-up System (IBBS) provides an engineered solution to enable an endurance bus for critical loads found in aircraft. The IBBS system provides back-up power to critical electronic loads such as EFIS, GPS, Autopilots and engine monitoring systems.

IBBS is available in 6 different models, including three FAA Certified models.   Installation parts and accessories are available to complete your installation, such as a dsub connector or full installation kit, through the Accessories tab or by choosing from the model list below.

Experimental Models:

• 12 volt, 3 amp-hour, Li-Fe-PO4 Integrated Battery Back-up System (IBBS-12V-3AH) – $275.00
• 12 volt, 6 amp-hour, Li-Fe-PO4 integrated Battery Back-up System (IBBS-12V-6AH) – $455.00
• 24 volt, 3 amp-hour, Li-Fe-PO4 Integrated Battery Back-up System (IBBS-24V-3AH) – $495.00

Installation Kit:

• Experimental IBBS Install Kit (IBBS-HARN-LiFe) – $95.00

Includes wiring harness and dsub connector

FAA Certified Models:

• 12 volt, 3 amp-hour, Li-Fe-PO4 Integrated Battery Back-up System (IBBS-12V-3AH-CRT-V) – $990.00
• 12 volt, 6 amp-hour, Li-Fe-PO4 Integrated Battery Back-up System (IBBS-12V-6AH-CRT-V) – $1,275.00
• 24 volt, 3 amp-hour, Li-Fe-PO4 Integrated Battery Back-up System (IBBS-24V-3AH-CRT-V) – $1,450.00

FAA Certified Installation Kit:

• Certified IBBS Install Kit for 12 volt models (IBBS-CRT-INSTALL-Kit-12V) – $265.00
• Certified IBBS Install Kit for 24 volt models (IBBS-CRT-INSTALL-Kit-24V) – $265.00

Includes wiring harness, LED indicator, switch, mounting hardware and STC data package with authorization letter

FAA Certified Data Package:

• STC Data Package with Authorization Letter (STC-AML-Data) – $100.00
